CMU-15445-proj2-checkpoint2(B+ tree index)

1. 要求

checkpoint2 是在 checkpoint1的基础上,实现B+树的删除、迭代器和并发访问操作(并发访问只用支持point search, insert和delete,不用支持range scan)。

具体要求参见:这里

总体来说,这部分相对第一部分会更难一些。

2. 题解

2.1 删除操作

删除操作是B+树种最为复杂的操作,因为涉及的情况较多。具体情况可以分为2大类:叶子节点和非叶子节点的删除。每类又可以分为4种情况:左兄弟转移,右兄弟转移,左兄弟合并、右兄弟合并。强烈推荐查看这篇文章,应该是我在全网中看到的最详细的B+树删除过程了。

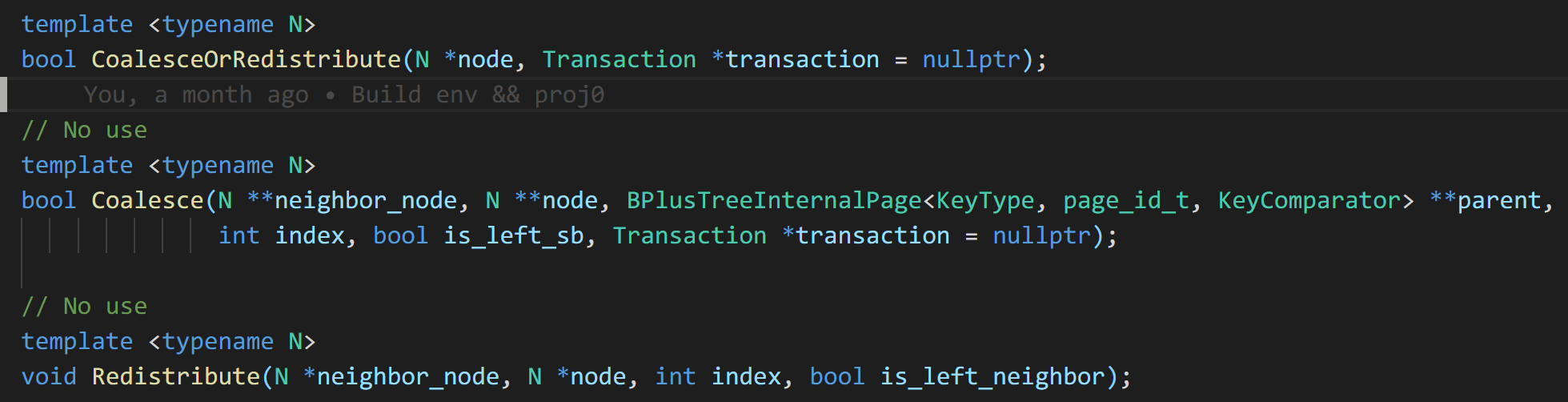

核心函数为以下三个:

image-20211024164944749

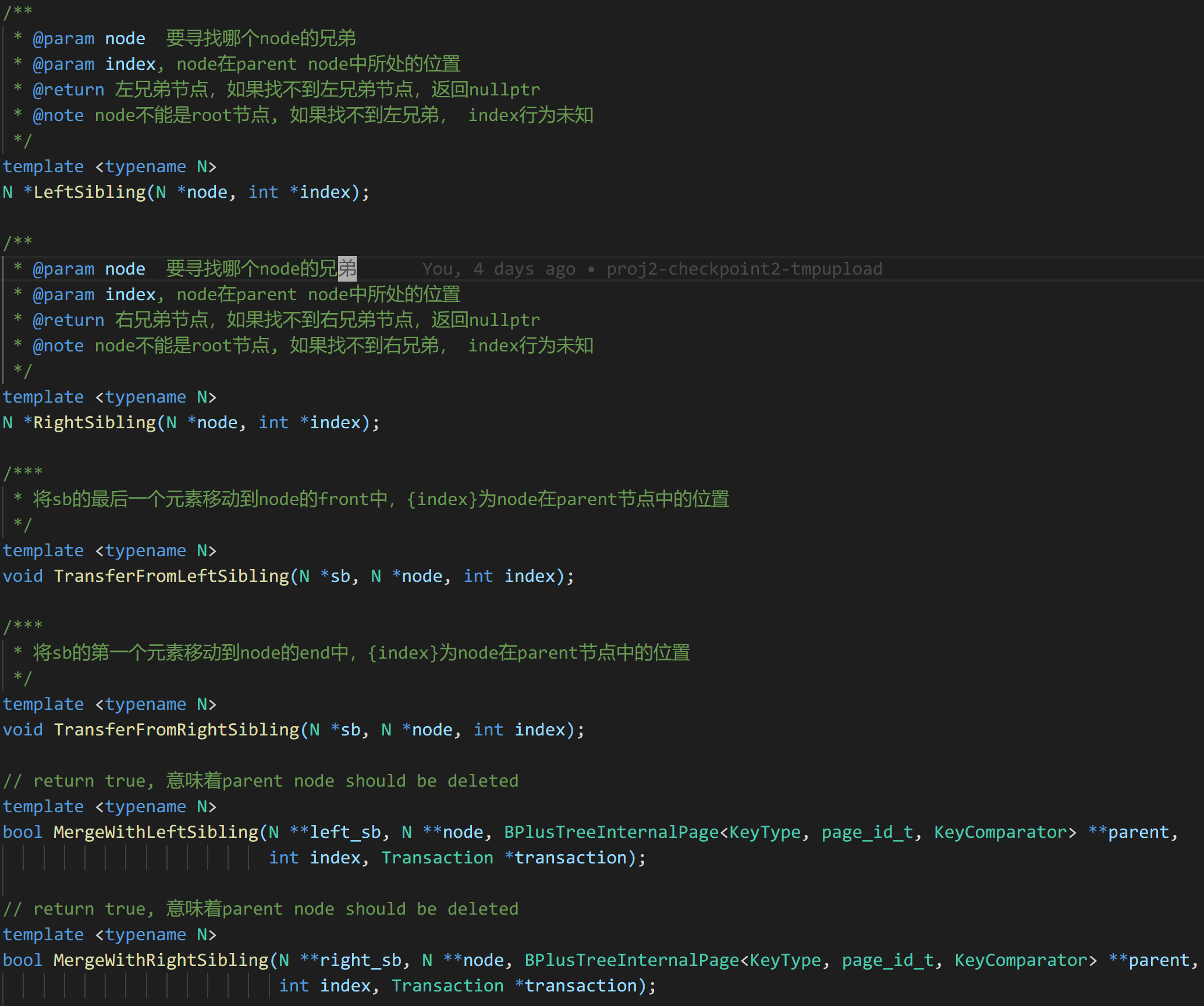

不过我在具体实现过程中,并没有使用 CoalesceRedistribute 两个函数,而是自实现了以下几个函数:

image-20211024165108398

简单描述下删除的算法步骤:

  1. 判定树是否为空,如果为空,直接返回;否则进入第2步

  2. 找到要删除的key可能存在的叶节点N,执行删除操作,如果删除无效(key不在该叶子节点中),直接返回;否则进入第3步;

  3. 查看叶节点N当前剩余size是否大于等于最小size,如果大于等于,则直接返回;否则进入第4步;

  4. 寻找左兄弟,如果有左兄弟,查看左兄弟是否可以转移一个key value到节点N中,如果不可以,查看右兄弟是否可以转移,转移完成后,更新父节点,返回;如果均不可以,进入第5步。

  5. 寻找左兄弟,如果有左兄弟,则合并节点N到左兄弟中,更新父节点,如果父节点当前size 小于 最小size,则递归到第4步,如果不存在左兄弟,寻找右兄弟,如果有右兄弟,则合并右兄弟到节点N中,更新父节点,如果父节点当前size 小于 最小size,则递归到第4步;

    Note: 如果一直递归到了root节点,由于root节点没有左右兄弟,则需要将root节点合并到孩子节点中。

写完后,可尝试是否能通过 b_plus_tree_delete_test 测试, 最好自己多写一些大规模数据量的测试,同时将treeinternal nodeleaf node的最小size设置得尽量小(我是直接设置的3,3),因为这样可以造成更多的分裂,合并。

2.2 Index iterator

这个就非常好写了,B+ tree暴露了三个函数给上游,分别为:

  1. begin()
  2. Begin(key), 这个相当于先seek
  3. end()

而index iterator中,也只有少量几个函数。核心逻辑为先定位到合适的leaf node,然后可以使用一个索引游标idx,记录当前的位置,如果idx达到一个node(假设为node i)的最大size时,更新游标到下一个node i+1,同时释放node i

至于 end()函数的设计,我的做法是 end() 是将当前索引到的 node 指针设定为 nullptr

2.3 并发index

针对这个问题,最简单的方式是采用 “大锁”的方式, 对全局定义一个 latch, 然后针对 Search, InsertDelete操作上 latch, 这样能够保证同一个时刻只有一个线程在做操作。 不过这样的代价就是B+树的性能过低。

我的建议是,先上大锁,然后查看是否能通过并发测试。

我在写时,B+树完成delete操作后通过了单线程下的所有默认测试,但是上大锁时并发测试居然没有过,所以强烈建议自己多写几个单线程下的测试,尽量做到较大数据量和 Internal page和 leaf page 的 min size较小。如果一切通过了,再考虑细粒度锁。

那如何提高性能? 使用 latch crabbing. 详细可以参考讲义ppt和教材的914页。这里只贴一下官方的一个简单描述:

  • Search: Starting with root page, grab read (R) latch on child Then release latch on parent as soon as you land on the child page.
  • Insert: Starting with root page, grab write (W) latch on child. Once child is locked, check if it is safe, in this case, not full. If child is safe, release all locks on ancestors.
  • Delete: Starting with root page, grab write (W) latch on child. Once child is locked, check if it is safe, in this case, at least half-full. (NOTE: for root page, we need to check with different standards) If child is safe, release all locks on ancestors.

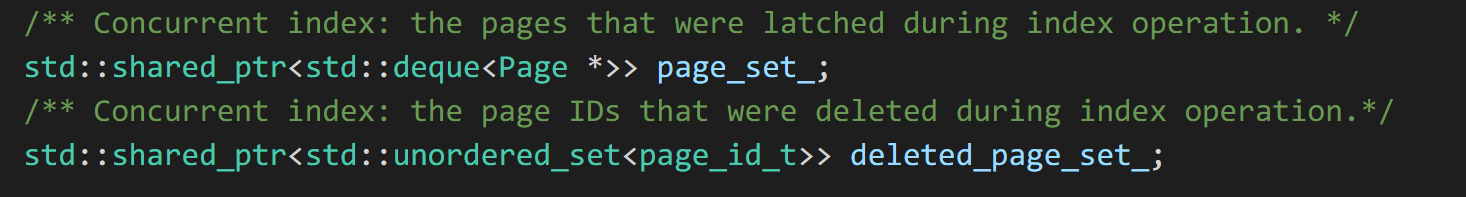

Insert操作来说, 既然在寻找到叶节点的过程中,可能存在加锁和释放锁,那肯定需要一个数据结构来存放之前已经加过锁的page, 这个数据结构存放在Transcation这个类中的page_set_, 如下图:

image-20211024171605862

delte_page_set_是给删除操作使用的

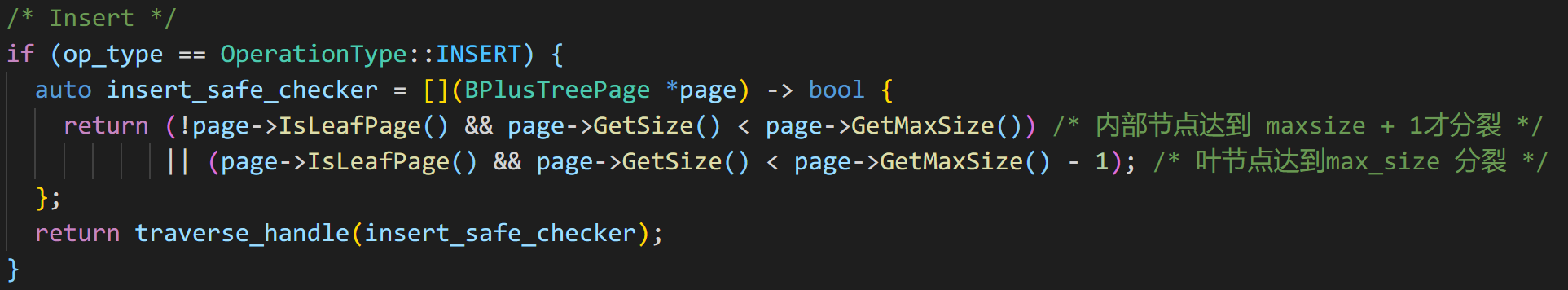

具体实现过程中,核心函数为 FindLeafPage, 在这个函数中,需要实现所有的加锁和释放锁过程,并把还未释放锁的 祖先节点们收集起来放到 page_set_中。问题是在从root节点到leaf节点的遍历过程中,什么时候能够释放祖先节点的锁?那就是判定当前所处的节点,是否safe。 什么是safe?不同的节点,有不同的的定义。我的insert safe_checker代码如下,注意safe_checker的实现与你之前的Insert操作和Delete操作强相关,所以我也不是标准答案:

image-20211024172045696

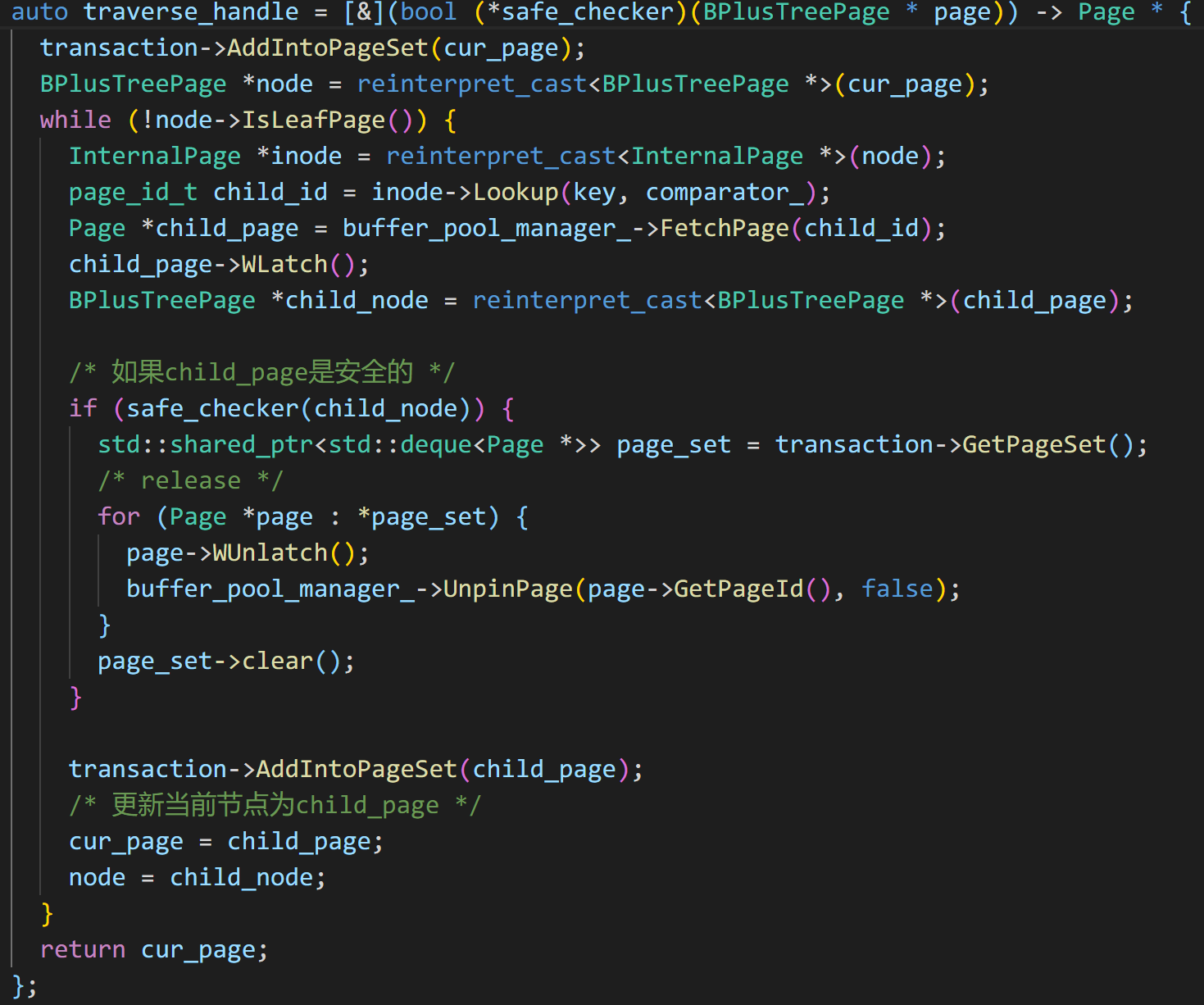

最后贴一下加锁和释放锁的核心代码:

image-20211024172236751

另外,需要思考下UnpinPageUnLatch操作的先后顺序是什么, 其实官网上已经给出了答案:

  • Think carefully about the order and relationship between UnpinPage(page_id, is_dirty) method from buffer pool manager class and UnLock() methods from page class. You have to release the latch on that page BEFORE you unpin the same page from the buffer pool.

原因是如果Unpin在Unlatch之前,即使thread拿到page的latch,一旦page被Unpin,后续这个page很可能会被替换出去,那thread拿到的锁也就失去了意义,因为数据已经发生了改变。

3. 注意点记录

上面是整个寻找过程中的加锁,下面再说说具体实现insert和delete过程中,有哪些需要注意的地方:

  1. root id的访问问题。由于root id是会在多个线程被访问,且可能被修改。所以首先要保证root id的访问修改是原子且对其它线程是可见的。这里可以通过一个mutex来保证(其实最好的做法个人是使用原子变量,但是不方便修改代码中已经默认写好的其他地方,所以采用了mutex)。但除此之外还是可能会存在问题,举个例子:当前root id=10, 存在thread 1执行查询操作, thread 2执行插入操作。 thread 2先被调度,但是在thread 2执行到一半时,切换到了thread 1,此时thread 1拿到root id=10的page,但是还未加上读锁。 此时线程再次切换到thread 2, 而thread 2由于插入操作,造成了原本 root id =10的根节点分裂,生成一个新的根节点,更新root id=11,现在thread 2执行完成,线程切换到thread 1, thread 1还是拿着旧的root id=10的page,加上读锁后执行后续search操作,此时的Search是错误的,因为不是从真正的根节点root id=11的page开始搜索。 那这个该如何解决?

    1. 我个人的做法是,首先记录一次root id为old_root_id,并获取page加上读锁后,再次比对 old_root_id是否等于当前的 root_id, 如果等于,则进行后操作,如果不等于,则释放page的锁,重试本次操作。这部分代码如下:
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    Page *BPLUSTREE_TYPE::FindLeafPageLock(const KeyType &key, OperationType op_type, Transaction *transaction) {
    /* 保存旧root page id */
    root_page_id_lck_.lock();
    int old_root_page_id = root_page_id_;
    root_page_id_lck_.unlock();
    /* 获取page,然后加锁,再double check root page id是否改变 */
    Page *cur_page = buffer_pool_manager_->FetchPage(old_root_page_id);
    if (op_type == OperationType::SEARCH) {
    cur_page->RLatch();
    } else {
    cur_page->WLatch();
    }
    /* 获取锁后,查看当前root_page_id是否和old_root_page_id相同 */
    root_page_id_lck_.lock();
    if (old_root_page_id != root_page_id_) {
    /* 由于其它线程的插入或者删除,造成了root_page 发生修改,所以现在需要重试 */
    buffer_pool_manager_->UnpinPage(cur_page->GetPageId(), false);
    root_page_id_lck_.unlock();
    if (op_type == OperationType::SEARCH) {
    cur_page->RUnlatch();
    } else {
    cur_page->WUnlatch();
    }
    return nullptr; // 返回nullptr,让调用者重试
    }
    root_page_id_lck_.unlock();
    ...
    }

    在调用FindLeafPageLock的地方,这样写:

1
2
3
4
5
/* find the leaf page that may contain the key */
LeafPage *leaf_page = nullptr;
while ((leaf_page = reinterpret_cast<LeafPage *>(FindLeafPageLock(key, OperationType::DELETE, transaction))) ==
nullptr) {
}

另一种做法是增加虚拟节点,所有操作应该首先获取虚拟节点,再获取root节点,这样可以将对root节点操作和其它节点的操作统一起来,应该是一种更为精简优雅的做法,也是推荐的做法。

  1. 删除操作时,兄弟节点也应该加锁!考虑如下场景:

    image-20211024174634054

    T1执行插入,并加锁蓝色节点,T2执行删除操作,正在删除旁边的红色,由于红色节点删除元素后,size小于最小size,选择和蓝色节点合并,此时如果不对蓝色节点加锁,那么蓝色节点的数据将得不到一致性保证。T2很可能从T1中拿到错误的数据,这也会造成数据异常。

4. 全测试文件

默认本地的测试用例是非常简单的,很不方便调试,在加入知乎大佬给的群后,群文件有人抓取了gradescope的全测试用例,这里给出所有的相关用例,辅助读者调试:

  1. grading_b_plus_tree_checkpoint_2_sequential_test.cpp

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    194
    195
    196
    197
    198
    199
    200
    201
    202
    203
    204
    205
    206
    207
    208
    209
    210
    211
    212
    213
    214
    215
    216
    217
    218
    219
    220
    221
    222
    223
    224
    225
    226
    227
    228
    229
    230
    231
    232
    233
    234
    235
    236
    237
    238
    239
    240
    241
    242
    243
    244
    245
    246
    247
    248
    249
    250
    251
    252
    253
    254
    255
    256
    257
    258
    259
    260
    261
    262
    263
    264
    265
    266
    267
    268
    269
    270
    271
    272
    273
    274
    275
    276
    277
    278
    279
    280
    281
    282
    283
    284
    285
    286
    287
    288
    289
    290
    291
    292
    293
    294
    295
    296
    297
    298
    299
    300
    301
    302
    303
    304
    305
    306
    307
    308
    309
    310
    311
    312
    313
    314
    315
    316
    317
    318
    319
    320
    321
    322
    323
    324
    325
    326
    327
    328
    329
    330
    331
    332
    333
    334
    335
    336
    337
    338
    339
    340
    341
    342
    343
    344
    345
    346
    347
    348
    349
    350
    351
    352
    353
    354
    355
    356
    357
    358
    359
    360
    361
    362
    363
    364
    365
    366
    367
    368
    369
    370
    371
    372
    373
    374
    375
    376
    377
    378
    379
    380
    381
    382
    383
    384
    385
    386
    387
    388
    389
    390
    391
    392
    393
    394
    395
    396
    397
    398
    399
    400
    401
    402
    403
    404
    405
    406
    407
    408
    409
    410
    411
    412
    413
    414
    415
    416
    417
    418
    419
    420
    421
    422
    423
    424
    425
    426
    427
    428
    429
    430
    431
    432
    433
    434
    435
    436
    437
    438
    439
    440
    441
    442
    443
    444
    445
    446
    447
    448
    449
    450
    451
    452
    453
    454
    455
    456
    457
    458
    459
    460
    461
    462
    463
    464
    465
    466
    467
    468
    469
    470
    471
    472
    473
    474
    475
    476
    477
    478
    479
    480
    481
    482
    483
    484
    485
    /**
    * b_plus_tree_sequential_test.cpp
    */

    #include <algorithm>
    #include <cstdio>

    #include "b_plus_tree_test_util.h" // NOLINT
    #include "buffer/buffer_pool_manager.h"
    #include "gtest/gtest.h"
    #include "storage/index/b_plus_tree.h"

    namespace bustub {

    /*
    * Score: 5
    * Description: The same test that has been run for checkpoint 1,
    * but added iterator for value checking
    */
    TEST(BPlusTreeTests, InsertTest1) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(0);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    std::vector<int64_t> keys = {1, 2, 3, 4, 5};
    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree.Insert(index_key, rid, transaction);
    }

    std::vector<RID> rids;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;
    for (auto pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    EXPECT_EQ(current_key, keys.size() + 1);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete transaction;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }

    /*
    * Score: 5
    * Description: The same test that has been run for checkpoint 1
    * but added iterator for value checking
    */
    TEST(BPlusTreeTests, InsertTest2) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(0);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    std::vector<int64_t> keys = {5, 4, 3, 2, 1};
    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree.Insert(index_key, rid, transaction);
    }

    std::vector<RID> rids;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;
    for (auto pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    EXPECT_EQ(current_key, keys.size() + 1);

    start_key = 3;
    current_key = start_key;
    index_key.SetFromInteger(start_key);
    for (auto iterator = tree.Begin(index_key); !iterator.isEnd(); ++iterator) {
    auto location = (*iterator).second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete transaction;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }

    /*
    * Score: 10
    * Description: Insert a set of keys, use GetValue and iterator to
    * check the the inserted keys. Then delete a subset of the keys.
    * Finally use the iterator to check the remained keys.
    */
    TEST(BPlusTreeTests, DeleteTest1) {
    // create KeyComparator and index schema
    std::string createStmt = "a bigint";
    Schema *key_schema = ParseCreateStatement(createStmt);
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(0);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    std::vector<int64_t> keys = {1, 2, 3, 4, 5};
    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree.Insert(index_key, rid, transaction);
    }

    std::vector<RID> rids;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;
    for (auto pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    EXPECT_EQ(current_key, keys.size() + 1);

    std::vector<int64_t> remove_keys = {1, 5};
    for (auto key : remove_keys) {
    index_key.SetFromInteger(key);
    tree.Remove(index_key, transaction);
    }

    start_key = 2;
    current_key = start_key;
    int64_t size = 0;
    for (auto pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    size = size + 1;
    }

    EXPECT_EQ(size, 3);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete transaction;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }

    /*
    * Score: 10
    * Description: Similar to DeleteTest2, except that, during the Remove step,
    * a different subset of keys are removed.
    */
    TEST(BPlusTreeTests, DeleteTest2) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(0);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    std::vector<int64_t> keys = {1, 2, 3, 4, 5};
    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree.Insert(index_key, rid, transaction);
    }

    std::vector<RID> rids;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;
    index_key.SetFromInteger(start_key);
    for (auto pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    EXPECT_EQ(current_key, keys.size() + 1);

    std::vector<int64_t> remove_keys = {1, 5, 3, 4};
    for (auto key : remove_keys) {
    index_key.SetFromInteger(key);
    tree.Remove(index_key, transaction);
    }

    start_key = 2;
    current_key = start_key;
    int64_t size = 0;
    for (auto pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    size = size + 1;
    }

    EXPECT_EQ(size, 1);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete transaction;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }

    /*
    * Score: 10
    * Description: Insert 10000 keys. Use GetValue and the iterator to iterate
    * through the inserted keys. Then remove 9900 inserted keys. Finally, use
    * the iterator to check the correctness of the remaining keys.
    */
    TEST(BPlusTreeTests, ScaleTest) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(30, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator, 3, 3);
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(0);
    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    int64_t scale = 10000;
    std::vector<int64_t> keys;
    for (int64_t key = 1; key < scale; key++) {
    keys.push_back(key);
    }

    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree.Insert(index_key, rid, transaction);
    }
    std::vector<RID> rids;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;
    for (auto pair : tree) {
    (void)pair;
    current_key = current_key + 1;
    }
    EXPECT_EQ(current_key, keys.size() + 1);

    int64_t remove_scale = 9900;
    std::vector<int64_t> remove_keys;
    for (int64_t key = 1; key < remove_scale; key++) {
    remove_keys.push_back(key);
    }
    // std::random_shuffle(remove_keys.begin(), remove_keys.end());
    for (auto key : remove_keys) {
    index_key.SetFromInteger(key);
    tree.Remove(index_key, transaction);
    }

    start_key = 9900;
    current_key = start_key;
    int64_t size = 0;
    index_key.SetFromInteger(start_key);
    for (auto pair : tree) {
    (void)pair;
    current_key = current_key + 1;
    size = size + 1;
    }

    EXPECT_EQ(size, 100);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete transaction;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }

    /*
    * Score: 10
    * Description: Insert a set of keys. Concurrently insert and delete
    * a different set of keys.
    * At the same time, concurrently get the previously inserted keys.
    * Check all the keys get are the same set of keys as previously
    * inserted.
    */
    TEST(BPlusTreeTests, SequentialMixTest) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(0);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;
    // first, populate index
    std::vector<int64_t> for_insert;
    std::vector<int64_t> for_delete;
    size_t sieve = 2; // divide evenly
    size_t total_keys = 1000;
    for (size_t i = 1; i <= total_keys; i++) {
    if (i % sieve == 0) {
    for_insert.push_back(i);
    } else {
    for_delete.push_back(i);
    }
    }

    // Insert all the keys, including the ones that will remain at the end and
    // the ones that are going to be removed next.
    for (size_t i = 0; i < total_keys / 2; i++) {
    int64_t insert_key = for_insert[i];
    int64_t insert_value = insert_key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(insert_key >> 32), insert_value);
    index_key.SetFromInteger(insert_key);
    tree.Insert(index_key, rid, transaction);

    int64_t delete_key = for_delete[i];
    int64_t delete_value = delete_key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(delete_key >> 32), delete_value);
    index_key.SetFromInteger(delete_key);
    tree.Insert(index_key, rid, transaction);
    }

    // Remove the keys in for_delete
    for (auto key : for_delete) {
    index_key.SetFromInteger(key);
    tree.Remove(index_key, transaction);
    }

    // Only half of the keys should remain
    int64_t start_key = 2;
    int64_t size = 0;
    index_key.SetFromInteger(start_key);
    for (auto pair : tree) {
    EXPECT_EQ((pair.first).ToString(), for_insert[size]);
    size++;
    }

    EXPECT_EQ(size, for_insert.size());

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete transaction;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    } // namespace bustub
    1. grading_b_plus_tree_checkpoint_2_concurrent_test.cpp
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    194
    195
    196
    197
    198
    199
    200
    201
    202
    203
    204
    205
    206
    207
    208
    209
    210
    211
    212
    213
    214
    215
    216
    217
    218
    219
    220
    221
    222
    223
    224
    225
    226
    227
    228
    229
    230
    231
    232
    233
    234
    235
    236
    237
    238
    239
    240
    241
    242
    243
    244
    245
    246
    247
    248
    249
    250
    251
    252
    253
    254
    255
    256
    257
    258
    259
    260
    261
    262
    263
    264
    265
    266
    267
    268
    269
    270
    271
    272
    273
    274
    275
    276
    277
    278
    279
    280
    281
    282
    283
    284
    285
    286
    287
    288
    289
    290
    291
    292
    293
    294
    295
    296
    297
    298
    299
    300
    301
    302
    303
    304
    305
    306
    307
    308
    309
    310
    311
    312
    313
    314
    315
    316
    317
    318
    319
    320
    321
    322
    323
    324
    325
    326
    327
    328
    329
    330
    331
    332
    333
    334
    335
    336
    337
    338
    339
    340
    341
    342
    343
    344
    345
    346
    347
    348
    349
    350
    351
    352
    353
    354
    355
    356
    357
    358
    359
    360
    361
    362
    363
    364
    365
    366
    367
    368
    369
    370
    371
    372
    373
    374
    375
    376
    377
    378
    379
    380
    381
    382
    383
    384
    385
    386
    387
    388
    389
    390
    391
    392
    393
    394
    395
    396
    397
    398
    399
    400
    401
    402
    403
    404
    405
    406
    407
    408
    409
    410
    411
    412
    413
    414
    415
    416
    417
    418
    419
    420
    421
    422
    423
    424
    425
    426
    427
    428
    429
    430
    431
    432
    433
    434
    435
    436
    437
    438
    439
    440
    441
    442
    443
    444
    445
    446
    447
    448
    449
    450
    451
    452
    453
    454
    455
    456
    457
    458
    459
    460
    461
    462
    463
    464
    465
    466
    467
    468
    469
    470
    471
    472
    473
    474
    475
    476
    477
    478
    479
    480
    481
    482
    483
    484
    485
    486
    487
    488
    489
    490
    491
    492
    493
    494
    495
    496
    497
    498
    499
    500
    501
    502
    503
    504
    505
    506
    507
    508
    509
    510
    511
    512
    513
    514
    515
    516
    517
    518
    519
    520
    521
    522
    523
    524
    525
    526
    527
    528
    529
    530
    531
    532
    533
    534
    535
    536
    537
    538
    539
    540
    541
    542
    543
    544
    545
    546
    547
    548
    549
    550
    551
    552
    553
    554
    555
    556
    557
    558
    559
    560
    561
    562
    563
    564
    565
    566
    567
    568
    569
    570
    571
    572
    573
    574
    575
    576
    577
    578
    579
    580
    581
    582
    583
    584
    585
    586
    587
    588
    589
    590
    591
    592
    593
    594
    595
    596
    597
    598
    599
    600
    601
    602
    603
    604
    605
    606
    607
    608
    609
    610
    611
    612
    613
    614
    /**
    * grading_b_plus_tree_checkpoint_2_concurrent_test.cpp
    */

    #include <chrono> // NOLINT
    #include <cstdio>
    #include <functional>
    #include <future> // NOLINT
    #include <thread> // NOLINT

    #include "b_plus_tree_test_util.h" // NOLINT
    #include "buffer/buffer_pool_manager.h"
    #include "gtest/gtest.h"
    #include "storage/index/b_plus_tree.h"

    // Macro for time out mechanism
    #define TEST_TIMEOUT_BEGIN \
    std::promise<bool> promisedFinished; \
    auto futureResult = promisedFinished.get_future(); \
    std::thread([](std::promise<bool>& finished) {
    #define TEST_TIMEOUT_FAIL_END(X) \
    finished.set_value(true); \
    }, std::ref(promisedFinished)).detach(); \
    EXPECT_TRUE(futureResult.wait_for(std::chrono::milliseconds(X)) != std::future_status::timeout) \
    << "Test Failed Due to Time Out";

    namespace bustub {
    // helper function to launch multiple threads
    template <typename... Args>
    void LaunchParallelTest(uint64_t num_threads, uint64_t txn_id_start, Args &&...args) {
    std::vector<std::thread> thread_group;

    // Launch a group of threads
    for (uint64_t thread_itr = 0; thread_itr < num_threads; ++thread_itr) {
    thread_group.push_back(std::thread(args..., txn_id_start + thread_itr, thread_itr));
    }

    // Join the threads with the main thread
    for (uint64_t thread_itr = 0; thread_itr < num_threads; ++thread_itr) {
    thread_group[thread_itr].join();
    }
    }

    // helper function to insert
    void InsertHelper(BPlusTree<GenericKey<8>, RID, GenericComparator<8>> *tree, const std::vector<int64_t> &keys,
    uint64_t tid, __attribute__((unused)) uint64_t thread_itr = 0) {
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(tid);
    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree->Insert(index_key, rid, transaction);
    }
    delete transaction;
    }

    // helper function to seperate insert
    void InsertHelperSplit(BPlusTree<GenericKey<8>, RID, GenericComparator<8>> *tree, const std::vector<int64_t> &keys,
    int total_threads, uint64_t tid, __attribute__((unused)) uint64_t thread_itr) {
    GenericKey<8> index_key;
    RID rid;
    // create transaction
    Transaction *transaction = new Transaction(tid);
    for (auto key : keys) {
    if (static_cast<uint64_t>(key) % total_threads == thread_itr) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    tree->Insert(index_key, rid, transaction);
    }
    }
    delete transaction;
    }

    // helper function to delete
    void DeleteHelper(BPlusTree<GenericKey<8>, RID, GenericComparator<8>> *tree, const std::vector<int64_t> &remove_keys,
    uint64_t tid, __attribute__((unused)) uint64_t thread_itr = 0) {
    GenericKey<8> index_key;
    // create transaction
    Transaction *transaction = new Transaction(tid);
    for (auto key : remove_keys) {
    index_key.SetFromInteger(key);
    tree->Remove(index_key, transaction);
    }
    delete transaction;
    }

    // helper function to seperate delete
    void DeleteHelperSplit(BPlusTree<GenericKey<8>, RID, GenericComparator<8>> *tree,
    const std::vector<int64_t> &remove_keys, int total_threads, uint64_t tid,
    __attribute__((unused)) uint64_t thread_itr) {
    GenericKey<8> index_key;
    // create transaction
    Transaction *transaction = new Transaction(tid);
    for (auto key : remove_keys) {
    if (static_cast<uint64_t>(key) % total_threads == thread_itr) {
    index_key.SetFromInteger(key);
    tree->Remove(index_key, transaction);
    }
    }
    delete transaction;
    }

    void LookupHelper(BPlusTree<GenericKey<8>, RID, GenericComparator<8>> *tree, const std::vector<int64_t> &keys,
    uint64_t tid, __attribute__((unused)) uint64_t thread_itr = 0) {
    Transaction *transaction = new Transaction(tid);
    GenericKey<8> index_key;
    RID rid;
    for (auto key : keys) {
    int64_t value = key & 0xFFFFFFFF;
    rid.Set(static_cast<int32_t>(key >> 32), value);
    index_key.SetFromInteger(key);
    std::vector<RID> result;
    bool res = tree->GetValue(index_key, &result, transaction);
    EXPECT_EQ(res, true);
    EXPECT_EQ(result.size(), 1);
    EXPECT_EQ(result[0], rid);
    }
    delete transaction;
    }

    const size_t NUM_ITERS = 100;

    void InsertTest1Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator, 3, 3);
    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;
    // keys to Insert
    std::vector<int64_t> keys;
    int64_t scale_factor = 100;
    for (int64_t key = 1; key < scale_factor; key++) {
    keys.push_back(key);
    }
    LaunchParallelTest(2, 0, InsertHelper, &tree, keys);

    std::vector<RID> rids;
    GenericKey<8> index_key;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;

    for (auto &pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    EXPECT_EQ(current_key, keys.size() + 1);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    void InsertTest2Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;
    // keys to Insert
    std::vector<int64_t> keys;
    int64_t scale_factor = 1000;
    for (int64_t key = 1; key < scale_factor; key++) {
    keys.push_back(key);
    }
    LaunchParallelTest(2, 0, InsertHelperSplit, &tree, keys, 2);

    std::vector<RID> rids;
    GenericKey<8> index_key;
    for (auto key : keys) {
    rids.clear();
    index_key.SetFromInteger(key);
    tree.GetValue(index_key, &rids);
    EXPECT_EQ(rids.size(), 1);

    int64_t value = key & 0xFFFFFFFF;
    EXPECT_EQ(rids[0].GetSlotNum(), value);
    }

    int64_t start_key = 1;
    int64_t current_key = start_key;

    for (auto &pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    }

    EXPECT_EQ(current_key, keys.size() + 1);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    void DeleteTest1Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;
    // sequential insert
    std::vector<int64_t> keys = {1, 2, 3, 4, 5};
    InsertHelper(&tree, keys, 1);

    std::vector<int64_t> remove_keys = {1, 5, 3, 4};
    LaunchParallelTest(2, 1, DeleteHelper, &tree, remove_keys);

    int64_t start_key = 2;
    int64_t current_key = start_key;
    int64_t size = 0;

    for (auto &pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    size = size + 1;
    }

    EXPECT_EQ(size, 1);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    void DeleteTest2Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    // sequential insert
    std::vector<int64_t> keys = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10};
    InsertHelper(&tree, keys, 1);

    std::vector<int64_t> remove_keys = {1, 4, 3, 2, 5, 6};
    LaunchParallelTest(2, 1, DeleteHelperSplit, &tree, remove_keys, 2);

    int64_t start_key = 7;
    int64_t current_key = start_key;
    int64_t size = 0;

    for (auto &pair : tree) {
    auto location = pair.second;
    EXPECT_EQ(location.GetPageId(), 0);
    EXPECT_EQ(location.GetSlotNum(), current_key);
    current_key = current_key + 1;
    size = size + 1;
    }

    EXPECT_EQ(size, 4);

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    void MixTest1Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;
    // first, populate index
    std::vector<int64_t> for_insert;
    std::vector<int64_t> for_delete;
    size_t sieve = 2; // divide evenly
    size_t total_keys = 1000;
    for (size_t i = 1; i <= total_keys; i++) {
    if (i % sieve == 0) {
    for_insert.push_back(i);
    } else {
    for_delete.push_back(i);
    }
    }
    // Insert all the keys to delete
    InsertHelper(&tree, for_delete, 1);

    auto insert_task = [&](int tid) { InsertHelper(&tree, for_insert, tid); };
    auto delete_task = [&](int tid) { DeleteHelper(&tree, for_delete, tid); };
    std::vector<std::function<void(int)>> tasks;
    tasks.emplace_back(insert_task);
    tasks.emplace_back(delete_task);
    std::vector<std::thread> threads;
    size_t num_threads = 10;
    for (size_t i = 0; i < num_threads; i++) {
    threads.emplace_back(std::thread{tasks[i % tasks.size()], i});
    }
    for (size_t i = 0; i < num_threads; i++) {
    threads[i].join();
    }

    int64_t size = 0;

    for (auto &pair : tree) {
    EXPECT_EQ((pair.first).ToString(), for_insert[size]);
    size++;
    }

    EXPECT_EQ(size, for_insert.size());

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    void MixTest2Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);
    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;

    // Add perserved_keys
    std::vector<int64_t> perserved_keys;
    std::vector<int64_t> dynamic_keys;
    size_t total_keys = 3000;
    size_t sieve = 5;
    for (size_t i = 1; i <= total_keys; i++) {
    if (i % sieve == 0) {
    perserved_keys.push_back(i);
    } else {
    dynamic_keys.push_back(i);
    }
    }
    InsertHelper(&tree, perserved_keys, 1);
    // Check there are 1000 keys in there
    size_t size;

    auto insert_task = [&](int tid) { InsertHelper(&tree, dynamic_keys, tid); };
    auto delete_task = [&](int tid) { DeleteHelper(&tree, dynamic_keys, tid); };
    auto lookup_task = [&](int tid) { LookupHelper(&tree, perserved_keys, tid); };

    std::vector<std::thread> threads;
    std::vector<std::function<void(int)>> tasks;
    tasks.emplace_back(insert_task);
    tasks.emplace_back(delete_task);
    tasks.emplace_back(lookup_task);

    size_t num_threads = 6;
    for (size_t i = 0; i < num_threads; i++) {
    threads.emplace_back(std::thread{tasks[i % tasks.size()], i});
    }
    for (size_t i = 0; i < num_threads; i++) {
    threads[i].join();
    }

    // Check all reserved keys exist
    size = 0;

    for (auto &pair : tree) {
    if ((pair.first).ToString() % sieve == 0) {
    size++;
    }
    }

    EXPECT_EQ(size, perserved_keys.size());

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    void MixTest3Call() {
    for (size_t iter = 0; iter < NUM_ITERS; iter++) {
    // create KeyComparator and index schema
    Schema *key_schema = ParseCreateStatement("a bigint");
    GenericComparator<8> comparator(key_schema);

    DiskManager *disk_manager = new DiskManager("test.db");
    BufferPoolManager *bpm = new BufferPoolManager(50, disk_manager);
    // create b+ tree
    BPlusTree<GenericKey<8>, RID, GenericComparator<8>> tree("foo_pk", bpm, comparator);

    // create and fetch header_page
    page_id_t page_id;
    auto header_page = bpm->NewPage(&page_id);
    (void)header_page;
    // first, populate index
    std::vector<int64_t> for_insert;
    std::vector<int64_t> for_delete;
    size_t total_keys = 1000;
    for (size_t i = 1; i <= total_keys; i++) {
    if (i > 500) {
    for_insert.push_back(i);
    } else {
    for_delete.push_back(i);
    }
    }
    // Insert all the keys to delete
    InsertHelper(&tree, for_delete, 1);

    auto insert_task = [&](int tid) { InsertHelper(&tree, for_insert, tid); };
    auto delete_task = [&](int tid) { DeleteHelper(&tree, for_delete, tid); };
    std::vector<std::function<void(int)>> tasks;
    tasks.emplace_back(insert_task);
    tasks.emplace_back(delete_task);
    std::vector<std::thread> threads;
    size_t num_threads = 10;
    for (size_t i = 0; i < num_threads; i++) {
    threads.emplace_back(std::thread{tasks[i % tasks.size()], i});
    }
    for (size_t i = 0; i < num_threads; i++) {
    threads[i].join();
    }

    int64_t size = 0;

    for (auto &pair : tree) {
    EXPECT_EQ((pair.first).ToString(), for_insert[size]);
    size++;
    }

    EXPECT_EQ(size, for_insert.size());

    bpm->UnpinPage(HEADER_PAGE_ID, true);
    delete key_schema;
    delete disk_manager;
    delete bpm;
    remove("test.db");
    remove("test.log");
    }
    }

    /*
    * Score: 5
    * Description: Concurrently insert a set of keys.
    */
    TEST(BPlusTreeConcurrentTest, InsertTest1) {
    TEST_TIMEOUT_BEGIN
    InsertTest1Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    /*
    * Score: 5
    * Description: Split the concurrent insert test to multiple threads
    * without overlap.
    */
    TEST(BPlusTreeConcurrentTest, InsertTest2) {
    TEST_TIMEOUT_BEGIN
    InsertTest2Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    /*
    * Score: 5
    * Description: Concurrently delete a set of keys.
    */
    TEST(BPlusTreeConcurrentTest, DeleteTest1) {
    TEST_TIMEOUT_BEGIN
    DeleteTest1Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    /*
    * Score: 5
    * Description: Split the concurrent delete task to multiple threads
    * without overlap.
    */
    TEST(BPlusTreeConcurrentTest, DeleteTest2) {
    TEST_TIMEOUT_BEGIN
    DeleteTest2Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    /*
    * Score: 5
    * Description: First insert a set of keys.
    * Then concurrently delete those already inserted keys and
    * insert different set of keys. Check if all old keys are
    * deleted and new keys are added correctly.
    */
    TEST(BPlusTreeConcurrentTest, MixTest1) {
    TEST_TIMEOUT_BEGIN
    MixTest1Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    /*
    * Score: 5
    * Description: Insert a set of keys. Concurrently insert and delete
    * a differnt set of keys.
    * At the same time, concurrently get the previously inserted keys.
    * Check all the keys get are the same set of keys as previously
    * inserted.
    */
    TEST(BPlusTreeConcurrentTest, MixTest2) {
    TEST_TIMEOUT_BEGIN
    MixTest2Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    /*
    * Score: 5
    * Description: First insert a set of keys.
    * Then concurrently delete those already inserted keys and
    * insert different set of keys. Check if all old keys are
    * deleted and new keys are added correctly.
    */
    TEST(BPlusTreeConcurrentTest, MixTest3) {
    TEST_TIMEOUT_BEGIN
    MixTest3Call();
    remove("test.db");
    remove("test.log");
    TEST_TIMEOUT_FAIL_END(1000 * 600)
    }

    } // namespace bustub

5. 总结

整个proj2原本计划两三天搞定,没想到在参考博文代码的基础上,checkpoint1就两天整,checkpoint2又是2天半,前前后后差不多一个星期就没了。实验过程中还是非常有收获的,比如以前从没写过B+树,更没写过会和disk交互的数据结构(以前所有学的数据结构都在内存中),对于并发的调试也多少有了点经验(这里感谢师兄的帮助与建议)。

额外给一点debug的建议:

  1. 充分利用好能够绘制出来的 dot file来可视化B+树
  2. 在多线程调试时,尽量找到最小的引起错误的数据量和线程数。 比如我在测试MixTest时,最开始的数据量是1000*10(操作数据量是1000, 操作线程数是10), 后来降到了 20*2, 然后通过 dot file 可视化推导出问题大致所在,最后通过一定的printf打印log,最终找到了bug。
  3. 多线程下发生错误时,可以尝试先使用大锁查看测试是否通过,再降低锁的粒度。如果大锁测试通过,小锁出现问题,那可能是加锁位置出现问题,此时采用gdb多线程调试其实意义不一定大,反而通过LOG分析更为有效。

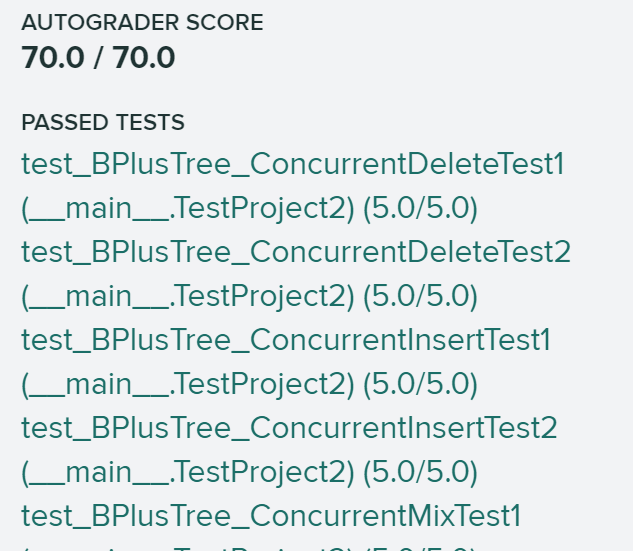

最后,记录下checkpoint2满分:

image-20211024182440733
文章对你有帮助?打赏一下作者吧
